Stassfurt TV70-4000H
Rundfunk- Fernseh- Telekommunikations AG Stassfurt (RFT)
- Country
- Germany
- Manufacturer / Brand
- Rundfunk- Fernseh- Telekommunikations AG Stassfurt (RFT)
- Year
- 1996
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 172307
Aus Prospekt
Aus Prospekt. TV70-4000H aus Echtholz
Aus Prospekt

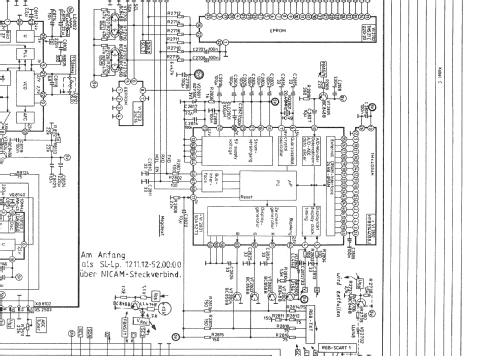

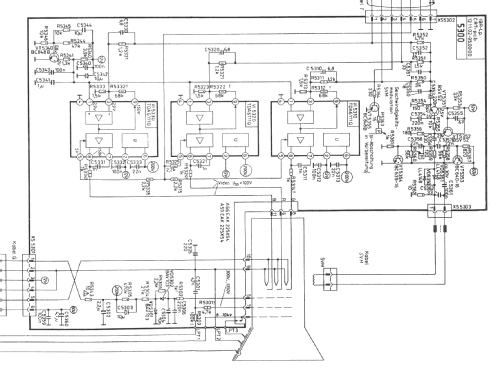

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stassfurt TV70-4000H - Rundfunk- Fernseh-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 810 x 565 x 475 mm / 31.9 x 22.2 x 18.7 inch
- Notes
-
RFT Stassfurt TV70-4000H, PAL/SECAM-TV, VHF/UHF-Tuner mit Sonderkanälen nach B/G Standard, 100 Hz-Technik mit Großflächen-und Zeilenflimmerreduktio, Rauschunterdrückung, Formatumschaltung, 512 Seitenspeicher, TOP und FLOF, 4x SCART, Blackline S/70 cm (66 cm sichtbar), Front: 1x AV,1x S-Video, 2x Audio, 1x Kopfhörer, 1x RFT-BUS für Datentransfer, vier Programmtimer, SAT-Lp und PIP-Lp nachrüstbar, "DAIDALOS" Design (Firma aus Braunschweig)
Preis: 2599DM für Gehäuse in Softgrau, 2699DM für Gehäuse in Holzdekor hell/dunkel/Wurzel
PIP-Modul: 199DM, SAT-Modul: 259DM
- Net weight (2.2 lb = 1 kg)
- 36.7 kg / 80 lb 13.4 oz (80.837 lb)
- Price in first year of sale
- 2,599.00 DM
- Author
- Model page created by a member from A. See "Data change" for further contributors.
