Techniradio 6 IR
TechniSat Digital GmbH, Daun ("neu RFT")
- Country
- Germany
- Manufacturer / Brand
- TechniSat Digital GmbH, Daun ("neu RFT")
- Year
- 2020/2021
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 334203
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- DSP, Digital Signal Processor
- Wave bands
- DAB and FM, perhaps with Streaming [DABFM]
- Power type and voltage
- Batteries / addl. power jack / Akku 3.7 V / 5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 3 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Techniradio 6 IR - TechniSat Digital GmbH, Daun "
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 175 x 106 x 54 mm / 6.9 x 4.2 x 2.1 inch

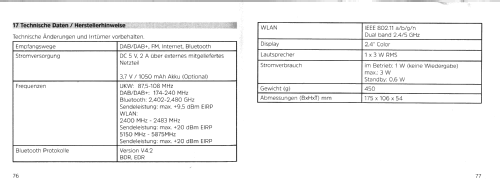

- Notes
-
- DAB/DAB+: 174 - 240 MHz
- FM: 87.5 - 108 MHz
- Internet
- BLUETOOTH: 2402 - 2480 MHz, Version V4.2 BDR, EDR
- WLAN: 2400 - 2483 MHz, 5150 MHz - 5875 MHz, 802.11a/b/g/n
- Display: 2.4" color
- Net weight (2.2 lb = 1 kg)
- 0.450 kg / 0 lb 15.9 oz (0.991 lb)
- Price in first year of sale
- 54.00 €
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Sándor Perneky. See "Data change" for further contributors.
