• Country
• Germany

• Manufacturer / Brand
• TechniSat Digital GmbH, Daun ("neu RFT")

• Year
• 2018 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355471

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• DAB and FM, perhaps with Streaming [DABFM]

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Techniradio RDR - TechniSat Digital GmbH, Daun "

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 127 x 60 x 24 mm / 5 x 2.4 x 0.9 inch

• Notes

• Empfangswege:

  • DAB/DAB+
  • FM 87,5-108 MHz mit RDS
  • USB
  • AUX

  Anschlüsse:

  • AUX 3,5 mm Klinke
  • Kopfhörer 3,5 mm Klinke
  • Netzteilanschluss Mini-USB
  • USB-A-Buchse

  Stromversorgung:

  • DC 5 V über mitgeliefertes Netzteil
  • Li-Ion-Akku BL-5C, 3,7 V/1050 mAh

  Antenne in Handschlaufe integriert,
  Taschenlampenfunktion

• Net weight (2.2 lb = 1 kg)
• 0.125 kg / 0 lb 4.4 oz (0.275 lb)

• Price in first year of sale
• 29.00 €

• Mentioned in

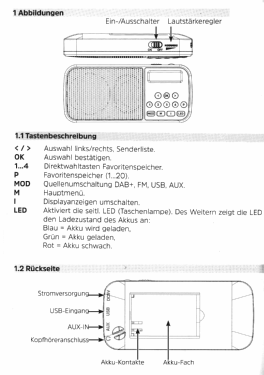

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
