• Country
• Australia

• Manufacturer / Brand
• Tecnico Electronics Pty Ltd Sydney

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261470

• • Brand: Tecnico-Aristocrat, Tecnicorda, Pye-Tecnico

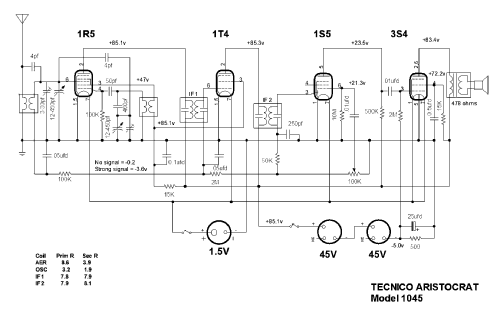

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1T4 1S5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Aristocrat 1045 - Tecnico Electronics Pty Ltd

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 190 x 155 mm / 11 x 7.5 x 6.1 inch

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
