• Country
• Portugal

• Manufacturer / Brand
• Tecnison; Prior Velho

• Year
• 1980 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 246779

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1.5 W (2 W max.)

• Material
• Metal case

• from Radiomuseum.org

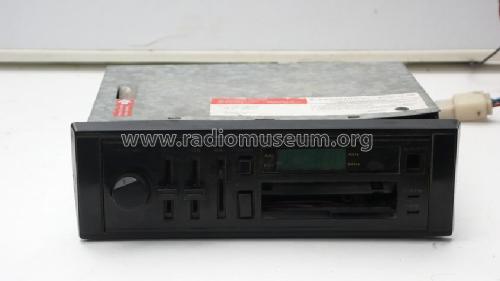

• Model: FC11D - Tecnison; Prior Velho

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 190 x 60 x 150 mm / 7.5 x 2.4 x 5.9 inch

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 2,500.00 pte

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.

• Other Models

• Here you find 16 models, 16 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
