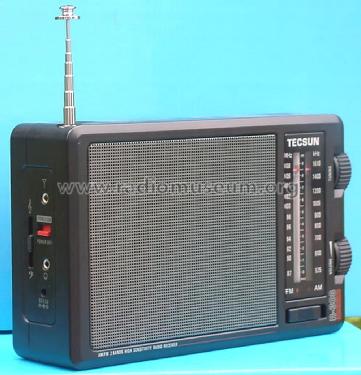

AM/FM 2 Bands High Sensitivity Radio Receiver R-308
Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
- Country
- People's Republic of China
- Manufacturer / Brand
- Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
- Year
- 2012 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 268743
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / R20: 3 x 1,5 / 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.5 W (undistorted)
- from Radiomuseum.org
- Model: AM/FM 2 Bands High Sensitivity Radio Receiver R-308 - Tecsun 德生通用电器制造有限公...
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 225 x 140 x 60 mm / 8.9 x 5.5 x 2.4 inch
- Notes
-
UKW: 87-108 MHz (Empfindlichkeit <5µV)
MW: 525-1610 kHz (Empfindlichkeit <1mV)Anschluß für externe Antenne,
Kopfhöreranschluß: 3,5 mm Klinkenbuchse,
Klangeinsteller - Höhen/Bässe,
Gewicht: 0,9 kg, ohne Batterien.
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Price in first year of sale
- 20.00 USD
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Rohlanda Redl. See "Data change" for further contributors.
