• Country
• People's Republic of China

• Manufacturer / Brand
• Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)

• Year
• 2021 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 360054

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• Si4735

• Main principle
• DSP, Digital Signal Processor

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / BL-5C: Li-ion 3.7 / DC 5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

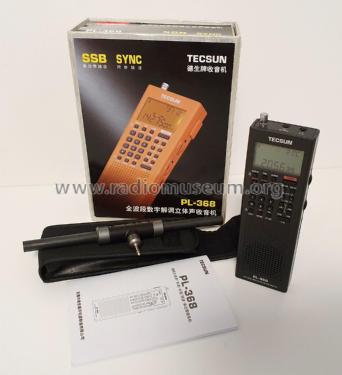

• Model: FM Stereo / LW / MW / SW-SSB Receiver PL-368 - Tecsun 德生通用电器制造有限公...

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 53 x 162 x 26 mm / 2.1 x 6.4 x 1 inch

• Notes

• The Tecsun PL-368 DSP receiver is based on Silicon Labs Si4735 DSP chip.

  Receiving frequency range:

  FM: 64 ~ 108 MHz / 76 ~ 108 MHz / 87 ~ 108 MHz / 88 ~ 108 MHz (selectable in menu)
  AM: 520 ~ 1710 kHz in 10 kHz steps or 522 ~ 1620 kHz in 9 kHz steps (selectable in menu)
  SW: 1711 ~ 29999 kHz;
  LW: 153 ~ 513 kHz

  Built-in Li-Ion battery, charging via USB-connector.

  ---

  Приемник построен на чипе DSP Silicon Labs Si4735.

  Диапазон частот приема:

  FM: 64 ~ 108 МГц / 76 ~ 108 МГц / 87 ~ 108 МГц / 88 ~ 108 МГц (выбирается в меню)
  AM: 520 ~ 1710 кГц с шагом 10 кГц или 522 ~ 1620 кГц с шагом 9 кГц (выбирается в меню)
  SW: 1711 ~ 29999 кГц;
  LW: 153 ~ 513 кГц

• Net weight (2.2 lb = 1 kg)
• 0.130 kg / 0 lb 4.6 oz (0.286 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
