FM Stereo /LW/MW/SW-SSB PLL Synthesized Receiver S-8800

Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)

Data
Forum
Pictures
Collections

  • Year
  • 2016 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 312923

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Storage and/or dry batteries / Li-ion: 2× 18650 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM Stereo /LW/MW/SW-SSB PLL Synthesized Receiver S-8800 - Tecsun 德生通用电器制造有限公...
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 272 x 173 x 88 mm / 10.7 x 6.8 x 3.5 inch
  • Notes

  • Equipped with analogue High-IF circuits, triple AM conversion and DSP decoding technology.

    This new radio receiver has excellent reception. Fitted with class-AB type power amplifiers and an ultra-dynamic full-range speaker, it creates a wonderful sound with excellent high/low tone selection.

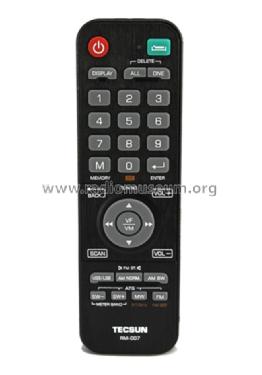

    As a bonus, the supplied remote control provides the possibility to directly key in your favourite station frequency etc..

    Frequency Range:

    FM (selectable setting):

    • 64 – 108 MHz
    • 76 – 108 MHz
    • 87 – 108 MHz
    • 88 – 108 MHz

    LW:

    • 100 - 519 kHz (tuning step 1 kHz or 9 kHz)

    MW (selectable setting):

    • 522 - 1620 kHz (band step 9 kHz for Asia / Africa / Europe)
    • 520 - 1710 kHz (band step 10 kHz for America)

    SW:

    • 1711 - 29999 kHz (tuning step 1 kHz or 5 kHz)

    Tuning Methods:

    • Jog dial manual tuning
    • Auto scan tuning with 5 second stop on each station
    • Direct frequency entry using the remote control

    Station Storage Methods:

    • Manual storage: tune into stations manually and store them
    • Semi-auto storage: storing stations during auto scan
    • Auto Tuning Storage (ATS): automatically tune into and store stations

    Basic Features:

    • PLL DSP Receiver
    • FM / MW / LW / SW / SSB (USB/LSB)
    • FM-stereo via headphones
    • Remote control operation
    • Adjustable shoulder or hand carrying belt
    • 650 station memories
    • Stored stations memory browsing
    • Auto Sorting Memory: Sorts all stored stations according to frequency and removes duplicate station frequencies.
    • LCD backlight (5-seconds or continuous illumination)
    • Multi-functional Digital Display shows:
    • Frequency & SW meter band, Signal strength indicator, Stored station location, Clock & Alarm time, Battery indicator & charging time , Clock/Alarm time (24H-format)
    • Sleep timer (1-120 minutes): auto turn off radio
    • Alarm clock (by radio)
    • Alarm Off Timer (1-90 minutes): auto turn off radio after alarm
    • Fitted with charcoal grey metal knobs
    • Treble & Bass control knobs
    • Separate tuning and fine tuning knobs
    • SSB tuning steps at 10 Hz / 1 kHz
    • AM IF bandwidth selection (2.3, 3.0, 4.0, 6.0 kHz)
    • SSB bandwidth selection (0.5, 1.2, 2.3, 3.0, 4.0 kHz)
    • Local / DX antenna gain switch
    • Low-impedance (50Ω) FM/SW BNC female antenna socket
    • High-impedance (500Ω) wire clamp terminals connection for LW/MW/SW antenna and ground
    • RCA Audio line-out jacks (L/R) for connection to HiFi system
    • Headphones jack (3.5mm)
    • Power supply: 2 x 18650 lithium (Li-ion) battery
    • Charging: DC (5V / 1A) USB mini-B charging socket
    • Unit size 272 x 173 x 88 mm (W x H x D)

    Box contents:

    • S-8800 receiver
    • Remote control + 2 pcs AAA battery
    • USB charging cable
    • English manual
    • 2 pcs 18650 Li-ion battery
