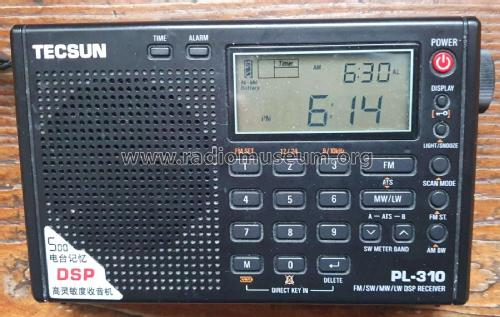

FM/SW/MW/LW DSP Receiver PL-310
Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
- Country
- People's Republic of China
- Manufacturer / Brand
- Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)
- Year
- 2009 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 341769
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Si4734
- Main principle
- DSP, Digital Signal Processor
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 3 x 1.5 / 5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
- Power out
- 0.35 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/SW/MW/LW DSP Receiver PL-310 - Tecsun 德生通用电器制造有限公...
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 141 x 87 x 30 mm / 5.6 x 3.4 x 1.2 inch
- Notes
-
DSP world pocket radio based on the Silicon Labs Si4734 receiver IC.
Main specifications:
- FM = Selectable between 87.5-108 MHz (EU/USA), or 64-108 MHz (Russia), or 76-108 MHz (Japan)
- MW = Selectable between 522-1620 kHz at 9 kHz steps, or 520-1710 kHz at 10 kHz steps (USA)
- LW = 153-513 kHz
- SW = 2300-21950 kHz
FM stereo when using headphones.
- 500 memories to store radio stations.
- Speaker: 500 mW, 16 Ω
- Earphone Jack: 3.5 mm, 8 to 32 Ω, Stereo
- Power Supply: UM-3 or AA x 3, or USB 5 V DC
- Net weight (2.2 lb = 1 kg)
- 0.187 kg / 0 lb 6.6 oz (0.412 lb)
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
