• Year
  • 2008 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 241888

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 455/55845 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: PLL Synthesized Receiver PL-600 - Tecsun 德生通用电器制造有限公...
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 188 x 116 x 31 mm / 7.4 x 4.6 x 1.2 inch
  • Notes
  • Wavebands:

    - LW 100 - 519 kHz

    - MW 522 - 1620 kHz

    - SW 1.711 - 30 MHz

    - FM (stereo) 76 - 108 MHz.

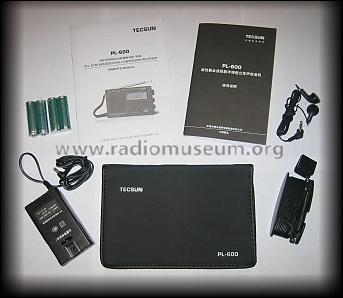

    Reception modes: FM/AM/SSB. Available in black, dark grey and silver. Folding stand incorporated into back of set. Scanning/memory facility on all bands. Supplied as standard with case, wrist band, charger, 4 AA NiMH rechargeable batteries or 4 alkaline AA batteries (the system can handle both types), reel antenna and manual.

  • Net weight (2.2 lb = 1 kg)
  • 0.445 kg / 0 lb 15.7 oz (0.98 lb)
  • Author
  • Model page created by Clive Forder. See "Data change" for further contributors.
