• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1924/1925

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 4948

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

• Main principle
• Crystal or Solid State Detector; Crystal-detection 2 circuits (no tubes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

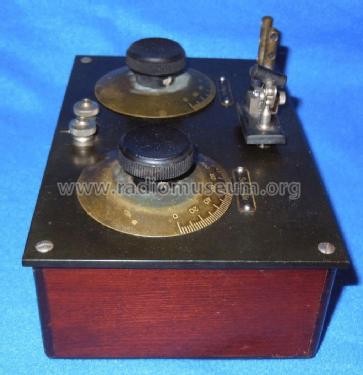

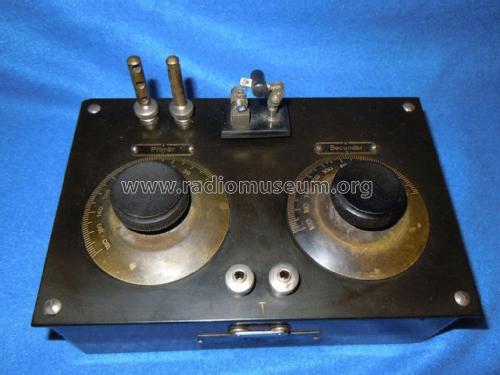

• Model: Detektor-Empfänger 1210 - Tefag; Telephon

• Dimensions (WHD)
• 130 x 70 x 200 mm / 5.1 x 2.8 x 7.9 inch

• Notes
• 250-700 m.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Price in first year of sale
• 39.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Der Funker (25..)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 262 models, 180 with images and 108 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
