- Country
- Germany
- Manufacturer / Brand
- Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4797
-
- alternative name: Telephon-Fabrik, AG vorm. J. Berliner
Aus Radiohändler 1933 H22 S1101

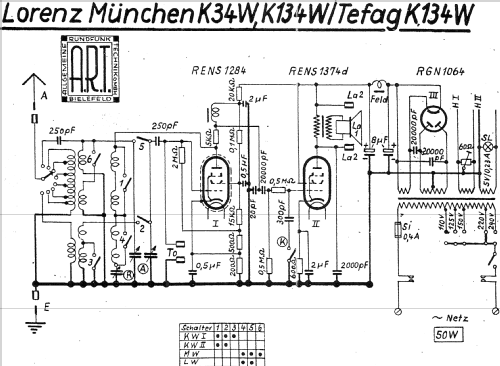

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: K134W - Tefag; Telephon
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Chassis ist baugleich mit Lorenz "München K34W"
- Price in first year of sale
- 150.50 RM
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Schenk-Regelien
- Mentioned in
- Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (1933, Heft 22, S. 1101)
