• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4774

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF3 CBC1 CL4 CY1 U920

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tefadyn 200 38GW - Tefag; Telephon

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 317 x 290 mm / 22 x 12.5 x 11.4 inch

• Notes

• Feldstärkeanzeige, variable Bandbreite. Eingangsbandfilter für MW und LW.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 241.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

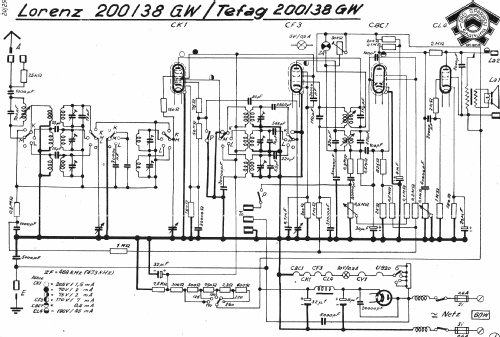

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
