Tefadyn 338W

• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4723

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

• Picture

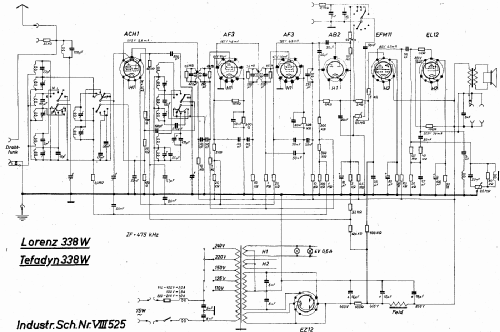

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ACH1 AF3 AF3 AB2 EFM11 EL12 AZ12

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tefadyn 338W - Tefag; Telephon

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 625 x 350 x 360 mm / 24.6 x 13.8 x 14.2 inch

• Notes
• Drahtfunkanschluss.

• Net weight (2.2 lb = 1 kg)
• 21.6 kg / 47 lb 9.2 oz (47.577 lb)

• Price in first year of sale
• 326.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
