• Country
• Germany

• Manufacturer / Brand
• Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

• Year
• 1929–1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4849

• • alternative name: Telephon-Fabrik, AG vorm. J. Berliner

• Number of Tubes
• 4

• Valves / Tubes
• REN1004 REN1004 RE134 RGN1500

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org

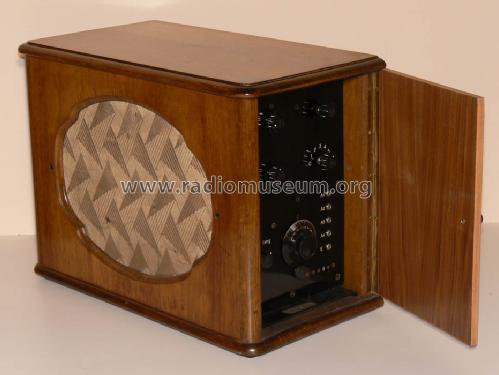

• Model: Tefagon 34L [W] - Tefag; Telephon

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 360 x 260 mm / 18.9 x 14.2 x 10.2 inch

• Notes
• Auch für 120 - 160 V (nach Angabe) lieferbar. [569]

• Price in first year of sale
• 267.00 RM !

• Source of data
• Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Katalog Radio-Zentrale Prohaska 1930/31 (dick)

• Literature/Schematics (2)
• Katalog: Ohlendorf u. Francke, Hannover, 1929/30, Seite 42
