Holiday-Luxus BK-61/UKW

• Country
• Germany

• Manufacturer / Brand
• Tefi-Apparatebau; Porz bei Köln

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75181

• Picture

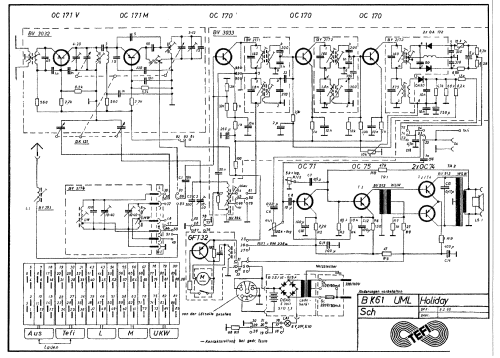

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Holiday-Luxus BK-61/UKW - Tefi-Apparatebau; Porz bei

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 205 x 110 mm / 11.8 x 8.1 x 4.3 inch

• Notes
• Schallbandspieler. Wie BK-60/UKW, aber AEG-Motor und höhere Ausgangsleistung.

• External source of data
• Herbert Jüttemann, Das Tefifon

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by a member from D. See "Data change" for further contributors.
