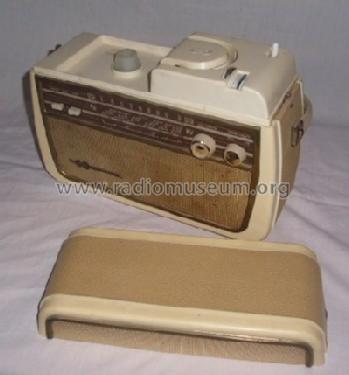

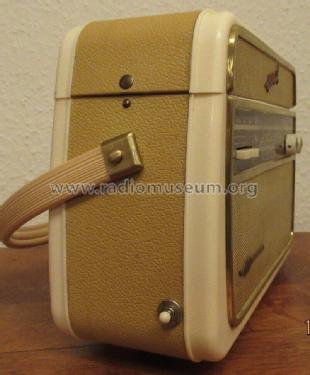

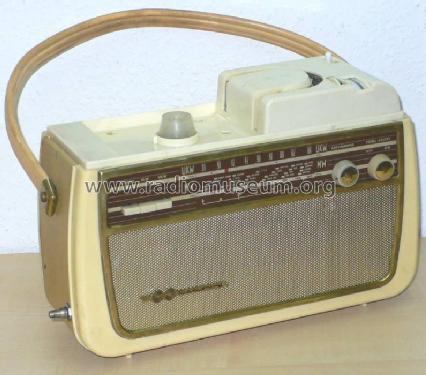

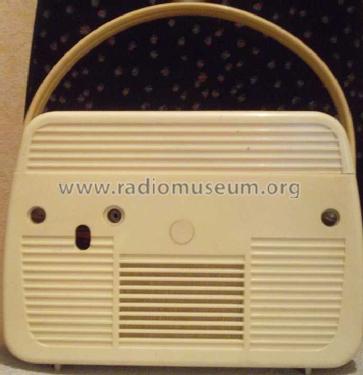

Holiday Rekord BK-62 3910

• Country
• Germany

• Manufacturer / Brand
• Tefi-Apparatebau; Porz bei Köln

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17275

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 TF65 TF65 AC120 AC120 OA79 OA90 E25C5

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type) / 220; 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Holiday Rekord BK-62 3910 - Tefi-Apparatebau; Porz bei

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 220 x 115 mm / 11.8 x 8.7 x 4.5 inch

• Notes
• Schallbandspieler. 3 Tasten, 2 Farben, Teleskopantenne links unten.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Price in first year of sale
• 328.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• Herbert Jüttemann, Das Tefifon
