• Country
• Germany

• Manufacturer / Brand
• Tefi-Apparatebau; Porz bei Köln

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82835

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC91 EL95 EL95 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Recorder/Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

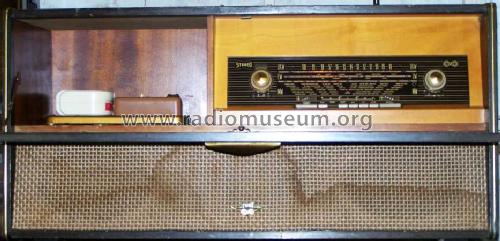

• Model: Musikschrank Juanita TS612 - Tefi-Apparatebau; Porz bei

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 950 x 690 x 350 mm / 37.4 x 27.2 x 13.8 inch

• Notes
• NF-Stereo; eingebauter Schallbandspieler KC1 mit Stereosystem.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in

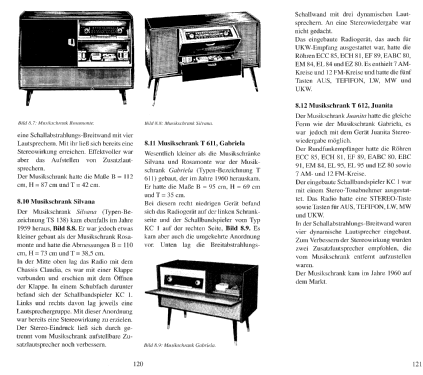

• Tefifon, Das; Herbert Jüttemann

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
