• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1953 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 225622

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

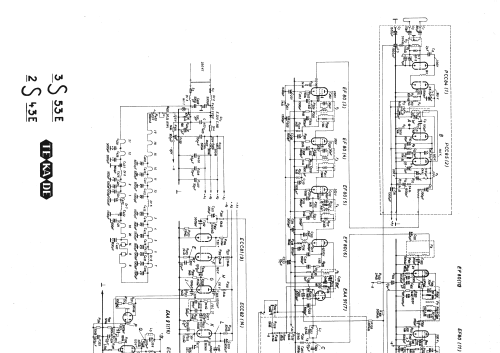

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 EF80 EAA91 PL83 EF80 EF80 PABC80 PL82 ECC81 ECC82 PCL81 EAA91 ECC82 PL81 PY81 EY51 MW53-20

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 3S53E - TeKaDe TKD, Süddeutsche

• Notes

• Siehe auch TeKaDe 2S43E mit gleichem Chassis aber anderer Bildröhre.

• Source of data
• -- Schematic
