- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1937–1940
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 4633
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD
- Number of Tubes
- 5
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Direct Current supply (DC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

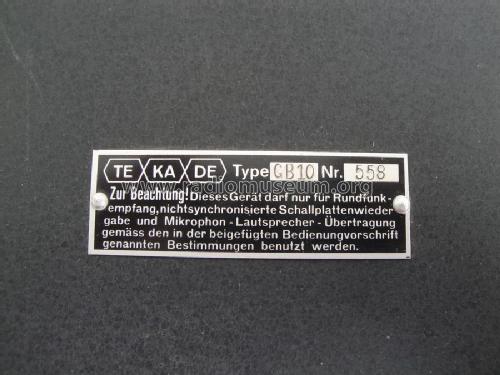

- Model: GB10 [neu] - TeKaDe TKD, Süddeutsche
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 570 x 260 x 230 mm / 22.4 x 10.2 x 9.1 inch
- Notes
- Eingangs-Steuerspannungen: 140 mV (Schalldose), 8 mV (Mikrofon); Ausgangs-Impedanzen: 10/200/1000 Ohm.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 430.00 RM
- Source of data
- Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
