• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19397

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF41 EM34 EF41 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 5.7 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

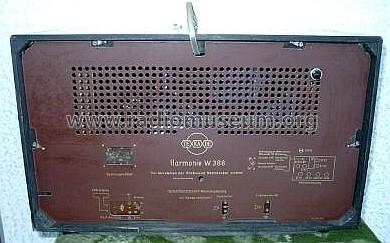

• Model: Harmonie W388 - TeKaDe TKD, Süddeutsche

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 400 x 295 mm / 25.6 x 15.7 x 11.6 inch

• Notes
• Zweistufige Bandbreitenregelung, drehbare Ferritantenne.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 418.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Original-techn. papers.
