• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1924/1925

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 4716

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes

• Main principle
• Audio-Amplification

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: NF-Verstärker - TeKaDe TKD, Süddeutsche

• Notes
• zu Zweikreiser passend

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Info Dr. H. Börner without schematic

• Picture reference

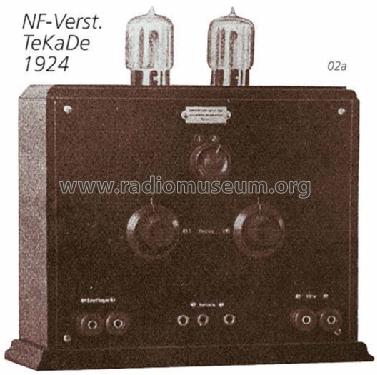

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
