- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4630
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD

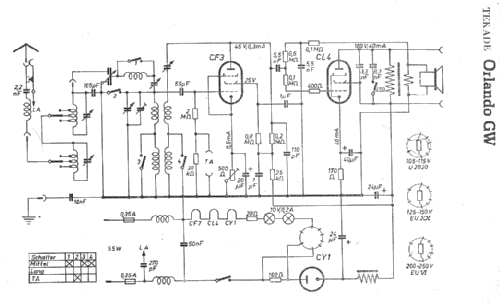

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 105; 115; 120; 150; 200; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Orlando GW - TeKaDe TKD, Süddeutsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 535 x 295 x 265 mm / 21.1 x 11.6 x 10.4 inch
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 172.00 RM
- Source of data
- Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
