Pegelmesser TF 300KHz U1169
TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1951
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 134695
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superhet with RF-stage; ZF/IF 335 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Pegelmesser TF 300KHz U1169 - TeKaDe TKD, Süddeutsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 340 x 160 x 340 mm / 13.4 x 6.3 x 13.4 inch
- Notes

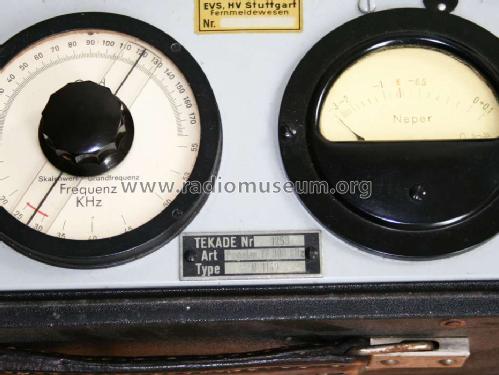

- Pegelmesser für hochfrequente Wechselspannungen nach dem Überlagerungsverfahren. Anwendung z. B. in der Trägerfrequenztechnik. Messung von 4,8 kHz bis 305 kHz in 6 Stufen, Messbereich von -7N bis +3,1N.
- Net weight (2.2 lb = 1 kg)
- 8.2 kg / 18 lb 1 oz (18.062 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Nikolaus Löwe. See "Data change" for further contributors.
