• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4613

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

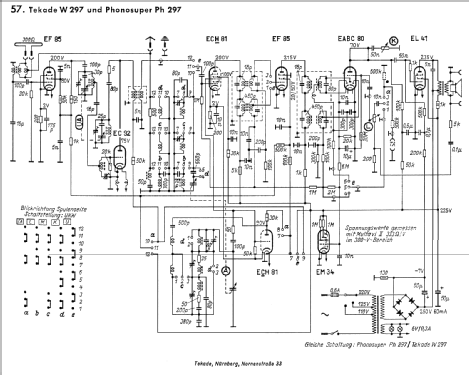

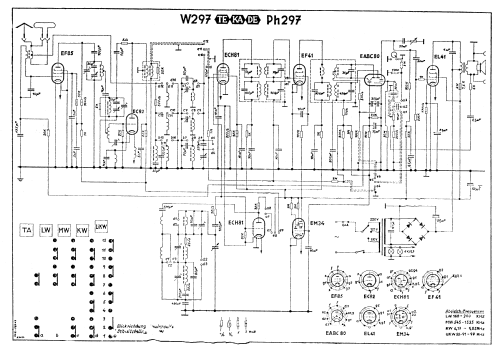

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF85 EC92 ECH81 EF85 EM34 EABC80 EL41

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: W297 [mit EM34] - TeKaDe TKD, Süddeutsche

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 460 x 330 x 280 mm / 18.1 x 13 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 265.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
