• Country
• Germany

• Manufacturer / Brand
• TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

• Year
• 1939/1940

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 4644

• • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
  • Brand: KD

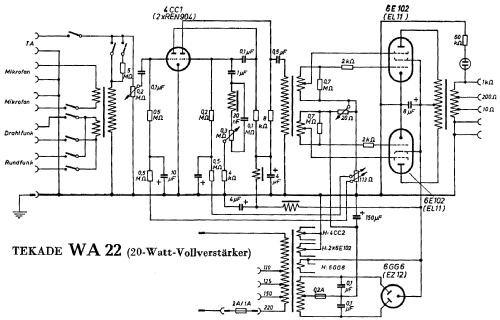

Click on the schematic thumbnail to request the schematic as a free document.

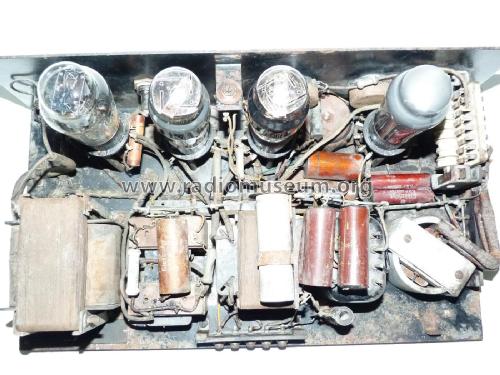

• Number of Tubes
• 4

• Valves / Tubes
• 4CC1 6E102 6E102 6GG6

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 22 W (unknown quality)

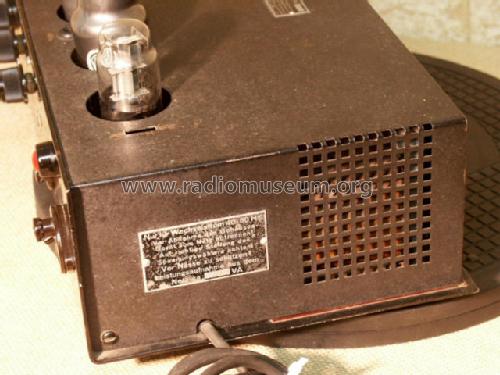

• Material
• Metal case

• from Radiomuseum.org
• Model: WA22 - TeKaDe TKD, Süddeutsche

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 190 x 260 mm / 16.9 x 7.5 x 10.2 inch

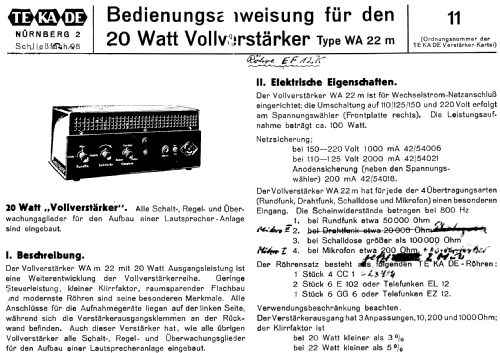

• Notes
• Vollverstärker. Eingangsspannungen: 12 mV (Schalldose), 0,6 mV (mikrofon); Ausgangs-Impedanzen: 10/200/1000 Ohm.

• Net weight (2.2 lb = 1 kg)
• 13.8 kg / 30 lb 6.3 oz (30.396 lb)

• Price in first year of sale
• 475.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

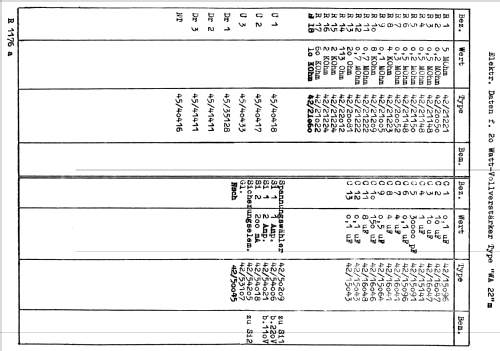

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
