- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1938–1940
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 4642
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD
- Number of Tubes
- 8
- Main principle
- Audio-Amplification; 4 AF stage(s)
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 75 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

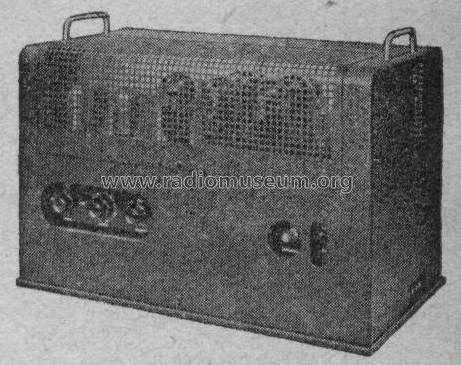

- Model: WB75 [neu] - TeKaDe TKD, Süddeutsche
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 580 x 370 x 315 mm / 22.8 x 14.6 x 12.4 inch
- Notes
- Vollverstärker. Eingangs-Steuerspannungen: 3,5 mV (Mikrofon), 60 mV (Schalldose); Ausgangs-Impedanzen: 10 und 200 Ohm.
- Net weight (2.2 lb = 1 kg)
- 42.6 kg / 93 lb 13.3 oz (93.833 lb)
- Price in first year of sale
- 1,178.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
