- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1955/1956
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 20446
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD

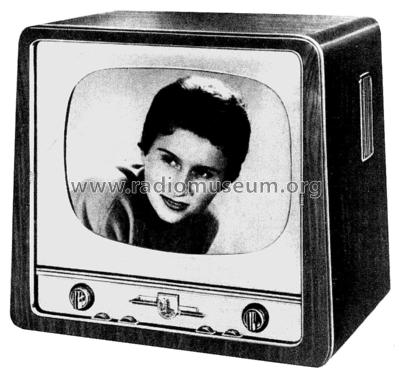

Q: TKD, Katalog-Bild 1955
Q: TKD, Katalog-Werbung 1955
- Number of Tubes
- 19
- Valves / Tubes
- PCC84 PCF80 EF80 EF80 EF80 PL83 EH90 ECC81 PCL82 ECC82 PL81 PY81 EY86 PCF80 EF80 EF80 PABC80 PL82 MW53-80
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weltbild 4T53 - TeKaDe TKD, Süddeutsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 610 x 490 mm / 26.4 x 24 x 19.3 inch
- Notes
- 10 VHF-Kanäle.
- Net weight (2.2 lb = 1 kg)
- 41 kg / 90 lb 4.9 oz (90.308 lb)
- Price in first year of sale
- 998.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
