Orts- und Bezirksempfänger Widerstandskopplung
TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1928–1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4657
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD

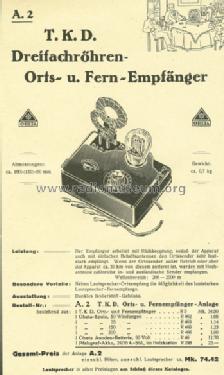

Katalog O.Böttcher 1929.
- Number of Tubes
- 1
- Valves / Tubes
- VT139_TKD
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Bakelite, TUBES VISIBLE
- from Radiomuseum.org
- Model: Orts- und Bezirksempfänger [Widerstandskopplung] - TeKaDe TKD, Süddeutsche
- Dimensions (WHD)
- 180 x 80 x 150 mm / 7.1 x 3.1 x 5.9 inch
- Notes
- Wid.Koppl.;wahlw. 2- od.3fach Sp-Koppler links hinten (Bei Brandt gebaut?) [6-163]
Maße (Höhe) ohne Röhre und Spulen.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Price in first year of sale
- 35.00 RM
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
