10MHz Storage Oscilloscope SC 503
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1978 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 350347

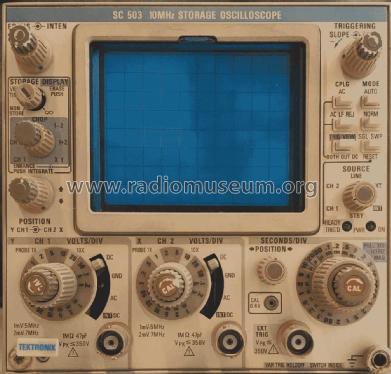

Front
Innenansicht A
Rückseite
Innenansicht B
Normalbetrieb
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 10MHz Storage Oscilloscope SC 503 - Tektronix; Portland, OR
- Shape
- Rack
- Notes
-
The Tektronix SC 503 is a slide-in analog storage oscilloscope for the TM500 series.
- Author
- Model page created by Michael Ludwigs. See "Data change" for further contributors.
