1A2 Plug-In-Unit
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1964
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 89077

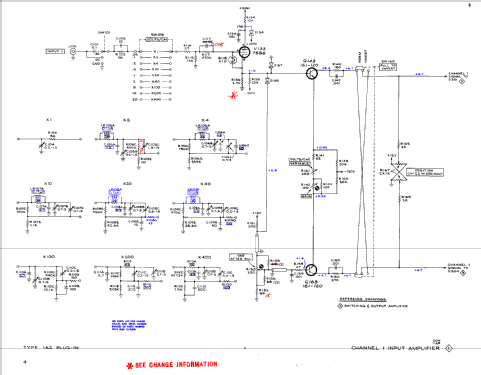

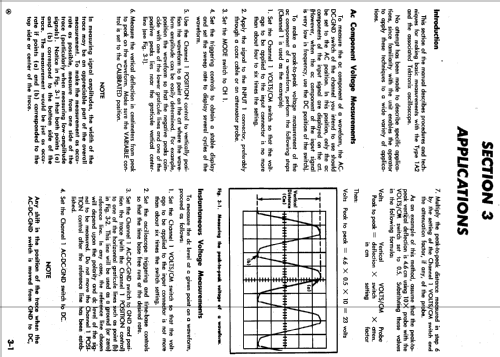

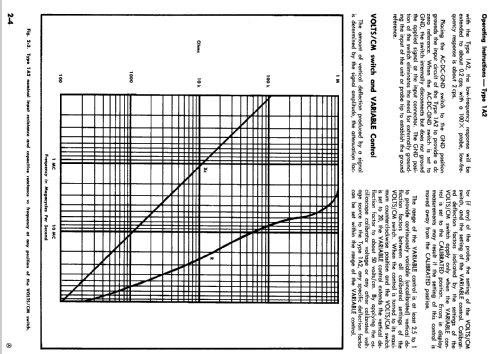

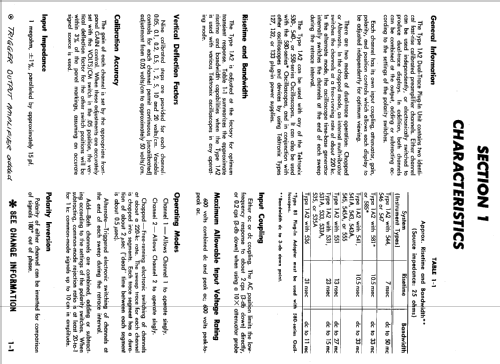

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 11
- Semiconductors
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: 1A2 Plug-In-Unit - Tektronix; Portland, OR
- Shape
- Chassis only or for «building in»
- Notes
- Dual-Trace plug-in unit for 531 to 551 series scopes.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
