1A4 Plug-In Unit
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1967–1974
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 96011
- Number of Tubes
- 1
- Valves / Tubes
- 6DJ8
- Number of Transistors
- 39
- Semiconductors
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 1A4 Plug-In Unit - Tektronix; Portland, OR
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7 x 5.875 x 11 inch / 178 x 149 x 279 mm
- Notes
-

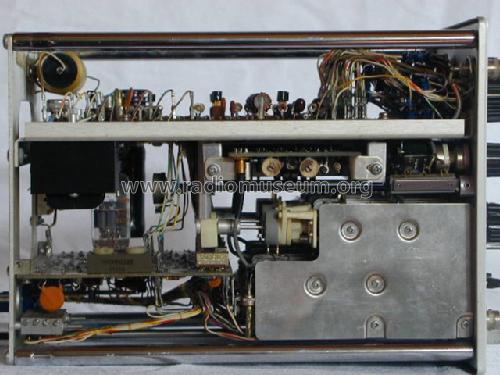

The Tektronix Type 1A4 is a 1-series vertical plug-in for 500-series oscilloscopes. It has four input channels and 50 MHz bandwidth.
Bei diesem Einschub handelt es sich um einen Vierkanal-Einschub. Die Bandbreite eines jeden Kanals erstreckt sich von 0 Hz bis 50 MHz. Der Ablenkfaktor eines jeden Kanals läßt sich von 10 mV/cm bis 20 V/cm in 11 kalibrierten Stufen einstellen. Die Anstiegszeit eines jeden Kanals beträgt 7 ns.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 1,275.00 $
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Martin Beier. See "Data change" for further contributors.
