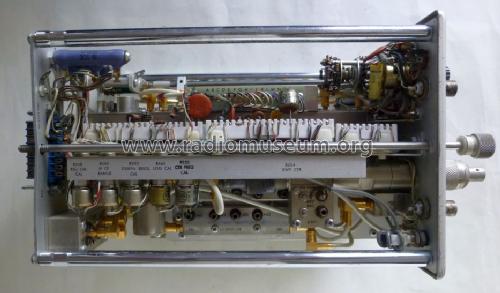

Type 1L20 Plug-In Unit 1L20
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1965
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 96737
- Number of Tubes
- 3
- Number of Transistors
- 31
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Type 1L20 Plug-In Unit 1L20 - Tektronix; Portland, OR
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 7 x 5.875 x 11 inch / 178 x 149 x 279 mm
- Notes
- Spektrumanalysator-Einschub für den Frequenzbereich von 10 MHz bis 4,2 GHz. Die Auflösung ist von 1 kHz/cm bis 10 MHz/cm in kalibrierten Stufen wählbar. Die Empfindlichkeit beträgt ca -100 dBm (2,2 µV). Der Dynamikbereich liegt bei der log. Darstellung bei >= 40 dB, bei der lin. Darstellung bei >= 26 dB.
- Price in first year of sale
- 2,750.00 $
- Source of data
- -- Original-techn. papers.
- Mentioned in
- - - Manufacturers Literature (Tektronix Catalog 24 Mid 1965 - Mid 1966 p.186)
- Author
- Model page created by Martin Beier. See "Data change" for further contributors.
