Amplifier Plug-In AM-6565/U, 7A15AN11

Tektronix; Portland, OR

Data
Forum
Pictures
Collections

  • Year
  • 1975 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 350427

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

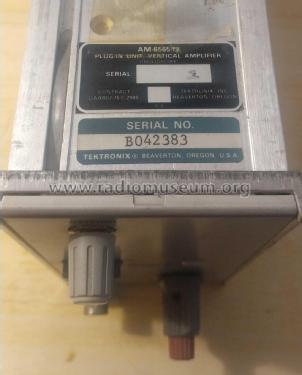

  • Model: Amplifier Plug-In AM-6565/U, 7A15AN11 - Tektronix; Portland, OR
  • Notes

  • The Tektronix AM-6565/U, 7A15AN11 is the US military version of a 7A15 amplifier without a display. The AM-6565/U is built completely discrete (i.e. no integrated circuits), primarily from BJTs, with a dual JFET as a front-end buffer.  It can be used in any 7000-Series oscilloscope, although for US military usage, the AN/USM-281C (7603NMS) oscilloscope was specified for this plug-in.

    Bandwidth:    0 – 80 MHz (DC), 1 Hz – 80 MHz (AC)
    Deflection:    5 mV/Div to 10 V/Div in 1–2–5 sequence
    Input impedance: 1 MΩ // 20 pF
    Features:
    - ×10 switch to extend sensitivity to 0.5 mV/Div (at 10 MHz bandwidth)
    - Invert switch
    - Sample ×10/Identify sensing input

  • Net weight (2.2 lb = 1 kg)
  • 0.820 kg / 1 lb 12.9 oz (1.806 lb)
  • Price in first year of sale
  • 350.00 USD
  • Literature/Schematics (1)
  • - - Manufacturers Literature (AM-6565/U Amplifier with options Instruction Manual, 070-1996-00, Apr. 1975.)
  • Literature/Schematics (2)
  • Department of the Army Technical Bulletin, TB 9-6625-2024-35, Dec. 2002.
  • Author
  • Model page created by Michael Ludwigs. See "Data change" for further contributors.
