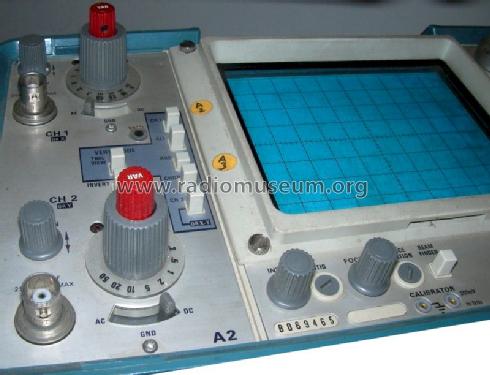

Dual-Trace Portable Oscilloscope 455

Tektronix; Portland, OR

Data
Forum
Pictures
Collections

  • Year
  • 1976 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 187205

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Wave bands
  • - without
  • Power type and voltage
  • Line / Batteries (any type) / 100-132; 200-264 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Dual-Trace Portable Oscilloscope 455 - Tektronix; Portland, OR
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 347 x 229 x 495 mm / 13.7 x 9 x 19.5 inch
  • Notes
  • Screen size: 10 x 8 cm Preis: inklusive Tastköpfen. Standard phosphor P31, or P11 phosphor optional
    50 MHz at 5mV/div, 5nS/div Sweep Rate, Trigger View, Dual-Trace, Delayed Sweep
    The 455, the 400 Series value leader, is a rugged and economical portable that retains the high performance of the 400-Series. Special features of the 455 let you check trigger signals presence and timing at the push of a button.
    An important 455 option, adding to versatility, is the snap-on 1106 Battery Pack.
    Catalog (1977)price $ 1745.00
    Option 04 Emc Modification $125
    Option 05 Tv Sync Separator $185
    Option 07 External DC Operation $125
    Option 78 P11 Phosphor (no charge).
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 6,400.00 DM
  • Author
  • Model page created by Egon Strampe. See "Data change" for further contributors.
