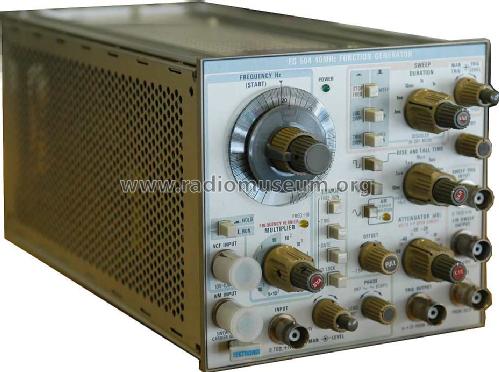

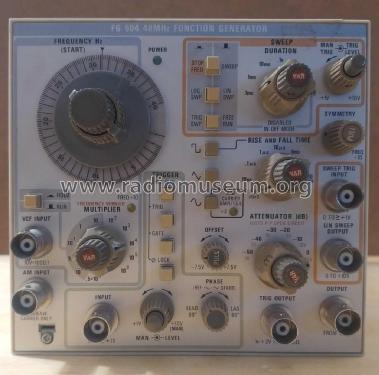

Function Generator FG504

Tektronix; Portland, OR

Data
Forum
Pictures
Collections

  • Year
  • 1976
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 227282

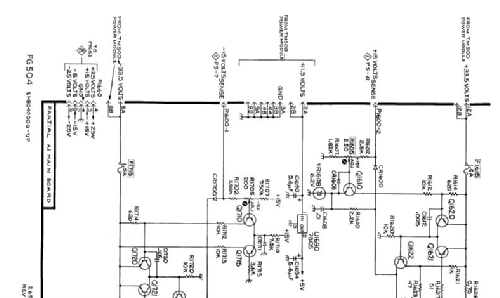

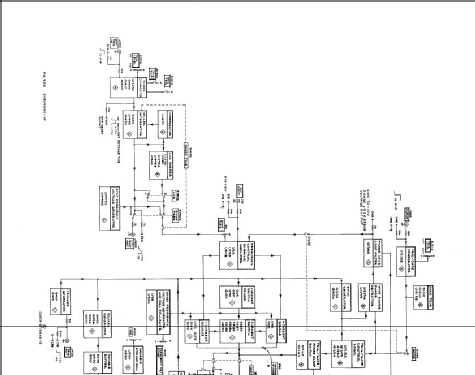

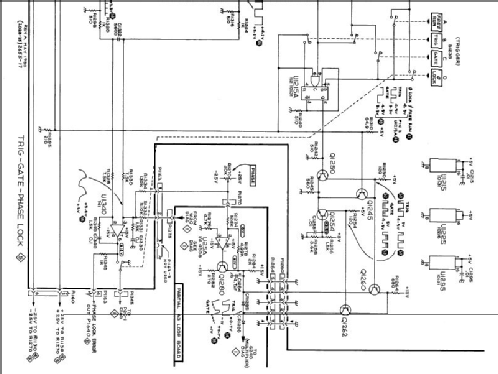

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • none
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Function Generator FG504 - Tektronix; Portland, OR
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 134 x 125 x 310 mm / 5.3 x 4.9 x 12.2 inch
  • Notes
    • 0.001 Hz to 40 Mhz
    • Three Basic Waveforms, Plus a Wide Range of Shaping with Variable Rise and Fall and Symetry Controls
    • Logarithmic or Linear Sweep
    • Separate Frequency Dials Set Lower (START) and Upper (STOP) Limits of Sweep
    • Up to 30 Vpp Output
    • Build-in Attenuator
    • AM an FM Modulation
    • Phase Lock Mode
    • External and Manual Trigger or Gate



  • Net weight (2.2 lb = 1 kg)
  • 1.9 kg / 4 lb 3 oz (4.185 lb)
  • Price in first year of sale
  • 1,200.00 USD
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Pius Steiner. See "Data change" for further contributors.
