Oscilloscope 316
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1958
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 270859
- Number of Tubes
- 34
- Valves / Tubes
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100-130 or 200-260, 50-60 cycles Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

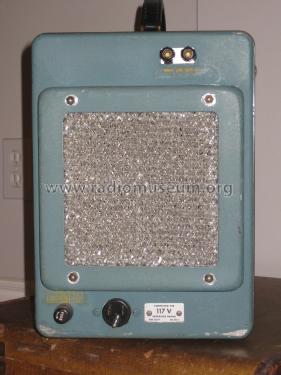

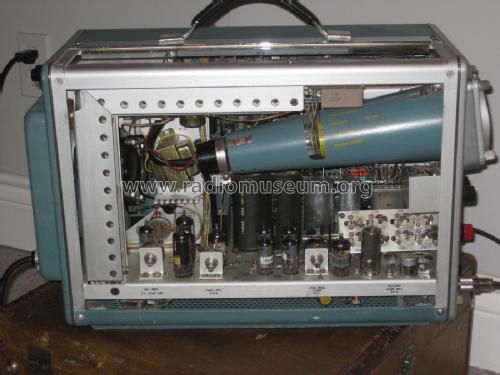

- Model: Oscilloscope 316 - Tektronix; Portland, OR
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 8.5 x 12 x 19.5 inch / 216 x 305 x 495 mm
- Notes
-
3 inch display, T316-P2 standard. P1, P7, P11, P31 phosphors optional
Frequency: DC to 10 Mhz (-3dB)
Deflection factor: 0.01v/div to 50v/div in 12 switch positions
Sweep rates: 2 sec/div to 0.2 microsec/div in 22 switch positions
Risetime: 0.035 microseconds
- Net weight (2.2 lb = 1 kg)
- 38 lb (38 lb 0 oz) / 17.252 kg
- Price in first year of sale
- 750.00 USD
- Author
- Model page created by Tony Denning. See "Data change" for further contributors.
