Oscilloscope 475A
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1976
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 116886
auf einem Sammlermarkt
Manual

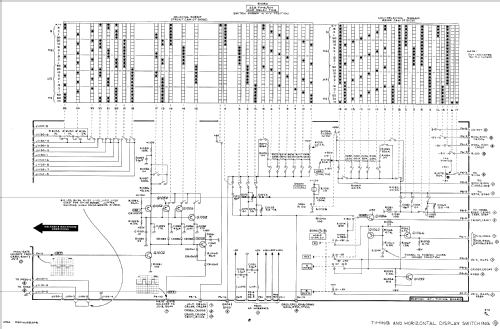

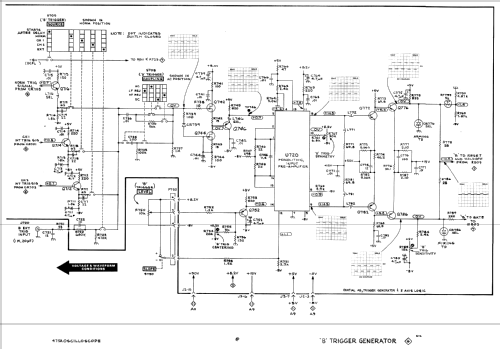

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

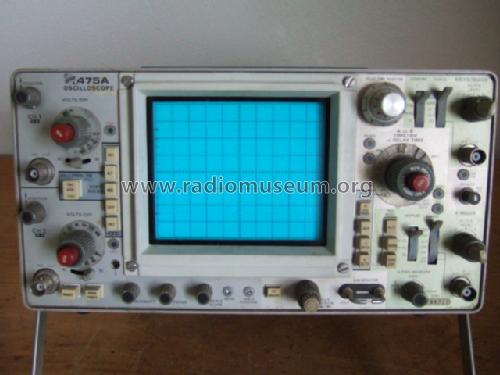

- Model: Oscilloscope 475A - Tektronix; Portland, OR
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 470 x 280 x 150 mm / 18.5 x 11 x 5.9 inch
- Notes
- 250 Mc bandwith Dual channel scope. Input impedance 2 megOhm /20 pF.
Y deflection: 5 mV to 100 V/div. in 14 steps.
Calibration source.
Dual time base for delayed display. US price: $ 3300.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 11,080.00 DM
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Johann Nussbaum. See "Data change" for further contributors.
