Passive Probe P6156
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1989 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 350429

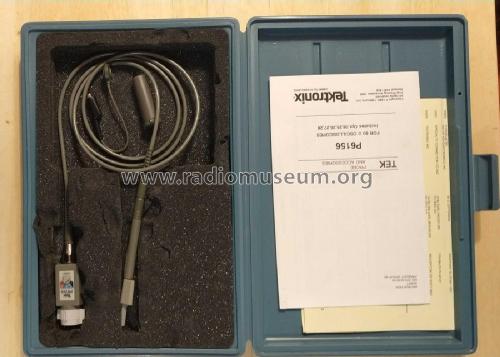

Tastkopf + Zubehör
Box
Tastkopf 1
Schalter
Interface Tek
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Passive Probe P6156 - Tektronix; Portland, OR
- Notes
-
The Tektronix P6156 is a compact, high-speed, passive voltage probe with low input capacitance and constant input resistance over a wide frequency range from DC to 3.5 GHz. It is designed for use with wideband oscilloscope amplifiers with 50 Ω inputs, such as the Tektronix 11000 series oscilloscopes with the 11A71 plug-in.
- Literature/Schematics (1)
- - - Manufacturers Literature (Instructions P6156 for 50 Ohm Oscilloscopes, 070-6430-01, no date.)
- Author
- Model page created by Michael Ludwigs. See "Data change" for further contributors.
