• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 161213

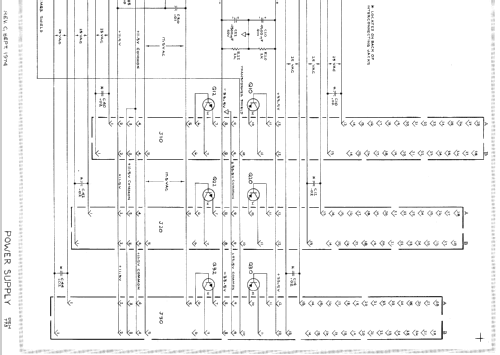

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 120; 200; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Power Module TM503 - Tektronix; Portland, OR

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 221 x 152 x 388 mm / 8.7 x 6 x 15.3 inch

• Notes
• The TM 500 Test and Measurement System is a totally new concept for test bench equipment. It is not a scope, but is there to complement it.
  In the three-compartment mainframe (TM503) one can combine the instrumentation required to do a job which previously required three times as much bench space and at a significantly greater cost. An added benefit of this modular plug-in approach is interface capabilities in multifunction application, i.e., connecting the output of the ramp generator to VCF input of the function generator for frequency sweeps, or monitoring the output of a signal source with the digital counter or digital voltmeter.

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 150.00 $

• Source of data
• - - Manufacturers Literature
