Power Supply 126
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1956
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 220999
Source: Tek Catalog 1960
Source: Tek Catalog 1960

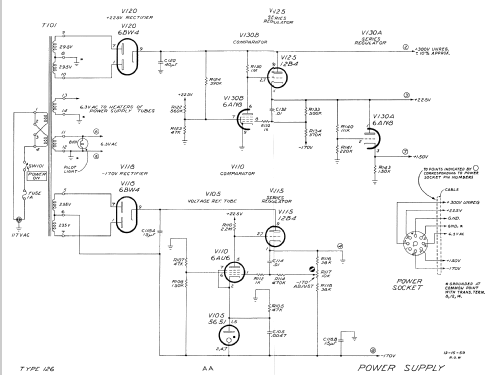

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- none
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125; 210-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Power Supply 126 - Tektronix; Portland, OR
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 4.125 x 2.5 x 15.5 inch / 105 x 64 x 394 mm
- Notes
- Used for one Type 360 Indicator or any one of the Type 160 Series Generators
Output Voltage:
+300 V dc unregulated
+225 V dc, regulated, 45 ma max
+150 V dc, regulated, 5 ma max
-170 V dc, regulated, 30 ma max.
- Net weight (2.2 lb = 1 kg)
- 7 lb 0 oz (7 lb) / 3.178 kg
- Price in first year of sale
- 100.00 USD
- Source of data
- -- Original-techn. papers.
