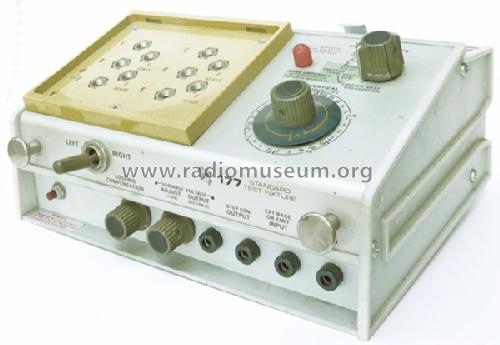

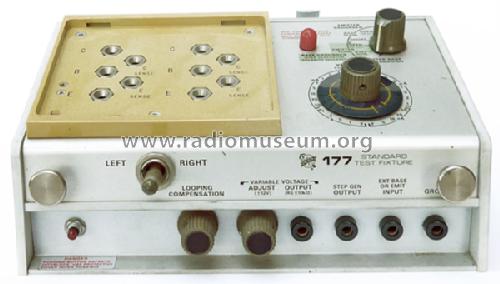

Standard Test Fixture 177
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1974 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 254593
- Wave bands
- - without
- Material
- Various materials
- from Radiomuseum.org
- Model: Standard Test Fixture 177 - Tektronix; Portland, OR
- Dimensions (WHD)
- 201 x 102 x 152 mm / 7.9 x 4 x 6 inch
- Notes
-
The 177 is a plug-in test fixture designed to operate with the 577-D1 or D2 Curve Tracer to form a system to measure the characteristics of a variety of two,three,and four terminal devices.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
