Storage Oscilloscope 466
Tektronix; Portland, OR
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tektronix; Portland, OR
- Year
- 1975
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 117578
Quelle: Tektronix Catalog 1983

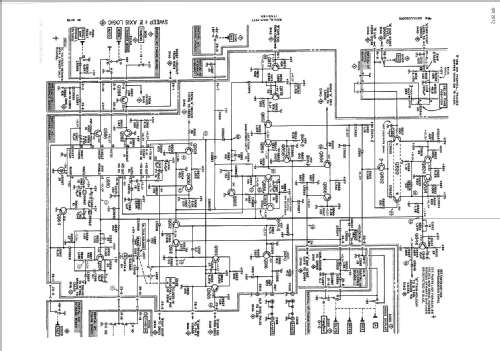

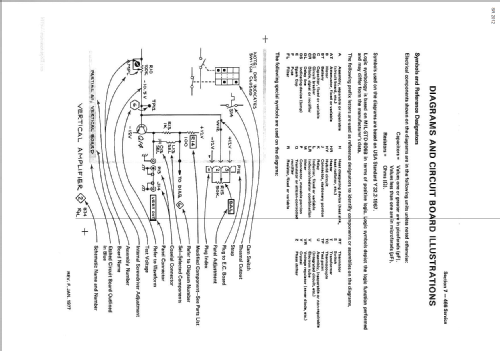

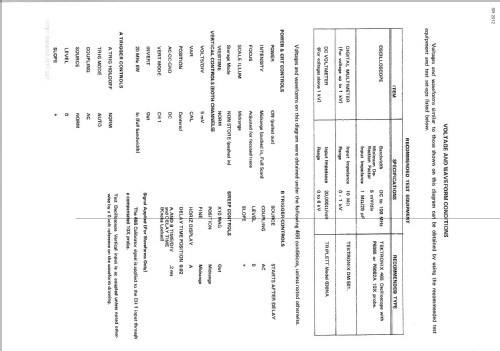

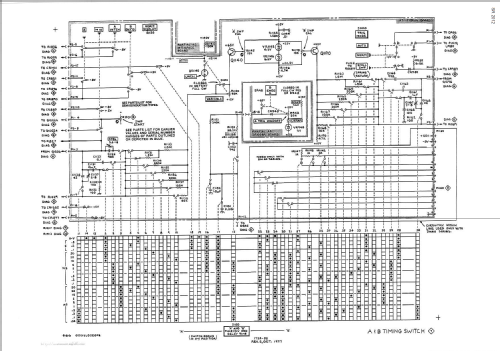

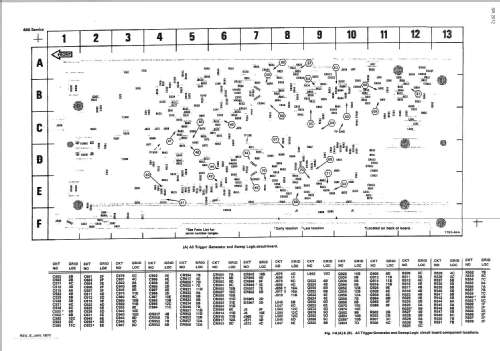

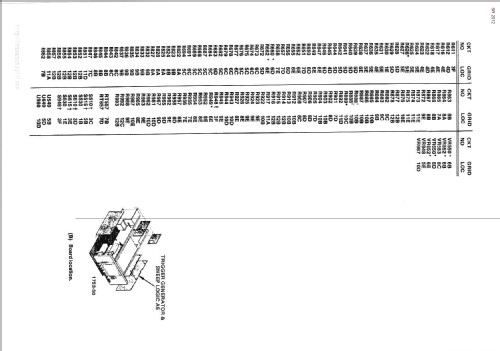

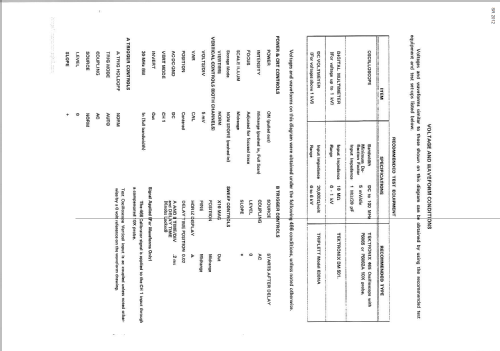

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 115; 120; 220; 230; 240; Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Storage Oscilloscope 466 - Tektronix; Portland, OR
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 285 x 115 x 540 mm / 11.2 x 4.5 x 21.3 inch
- Notes
- Dual beam storage oscilloscope, DC to 100 MHz.
Input impedance 1 MOhm /20 pF.
Y deflection: 5 mV to 50 V/div. in 13 steps.
X deflection: Dual time base 0,05us to 0,5s in 22 steps.
- Net weight (2.2 lb = 1 kg)
- 18 kg / 39 lb 10.4 oz (39.648 lb)
- Price in first year of sale
- 16,680.00 DM
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Dieter Barkawitz. See "Data change" for further contributors.
