• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1966–1969

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 195385

• Number of Tubes
• 6

• Valves / Tubes
• 7587 7587 7587 7587 7587 7587

• Number of Transistors
• 64

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

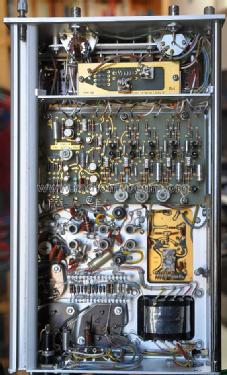

• Model: Time-Mark Generator 184 - Tektronix; Portland, OR

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 229 x 150 x 410 mm / 9 x 5.9 x 16.1 inch

• Notes
• The Tektronix Type 184 Time Mark Generator provides high accuracy time signals for calibration purposes, e.g. for checking and adjusting of oscilloscopes.
  It is crystal controlled and provides 16 marker intervals, 5 sine wave frequencies, and 7 trigger-pulse intervals. The Type 184 is transistorized (plus 6 nuvistors) and is frequency controlled by a temperature-stabilized 10-MHz crystal oscillator.
  Marker Output:
  Positive-going markers with 16 intervals of 100 ns to 5 s in 1-5-10 sequence, 1-V minimum peak amplitude into 50 Ω
  Marker Amplifier Output:
  Positive- or negative-going markers with 14 intervals of 1 µs to 5 s in 1-5-10 sequence, 25-V minimum amplitude into 1 kΩ.
  Sinewave Outputs:
  10-ns, 20-ns and 50-ns sinewave signals at marker output connector with 1-V minimum peak to peak amplitude into 50 Ω. 2-ns and 5-ns sinewave signals at HF output connector with 0.3 V minimum peak to peak amplitude into 50 Ω.
  Trigger Output:
  Positive-going pulses with 7 intervals of 1 µs to 1 s in 1-10 sequence, 0.4-V minimum amplitude into 50 Ω, 2.5-V minimum amplitude into open circuit.

• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• Price in first year of sale
• 675.00 $

• Mentioned in
• - - Manufacturers Literature (Tektronix catalogue 1969)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
