• Country
• Germany

• Manufacturer / Brand
• Teladi; Düsseldorf

• Year
• 1952/1953

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 19340

• • alternative name: Diederichs & Kühlwein

• Number of Tubes
• 9

• Valves / Tubes
• 6SJ7 6SJ7 6SN7 6AC7 6V6 LS50 LS50 EZ12 EZ12

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

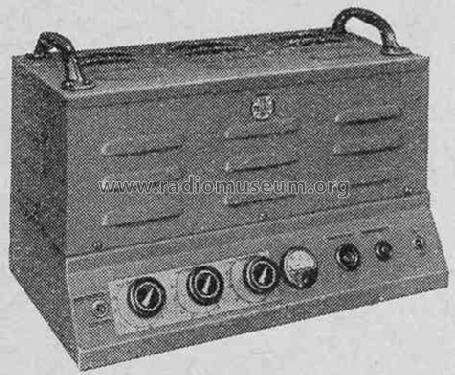

• Model: TKV60 - Teladi; Düsseldorf

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 240 x 250 mm / 16.5 x 9.4 x 9.8 inch

• Notes
• 4 Eingänge, davon 2 regelbar; Frequenzgang: 30···15000 Hz.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 1,260.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 2, Ernst Erb
