• Country
• Germany

• Manufacturer / Brand
• Teladi; Düsseldorf

• Year
• 1955–1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 20461

• • alternative name: Diederichs & Kühlwein

• Number of Tubes
• 8

• Valves / Tubes
• ECC82 ECC83 ECC83 ECC81 EM71 EL84 EL34 EL34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 110; 120; 150; 220; 240 / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

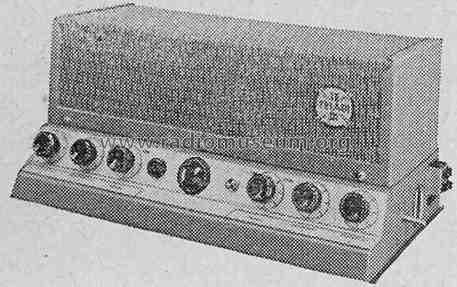

• Model: TKV60NB [ECC82] - Teladi; Düsseldorf

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 210 x 250 mm / 16.5 x 8.3 x 9.8 inch

• Notes
• Mischverstärker; Frequenzbereich 50-12000 Hz, 4 Eingänge, 3 Ausgänge (umschaltbar).

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 1,150.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 105 models, 64 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
