• Country
• Germany

• Manufacturer / Brand
• Teladi; Düsseldorf

• Year
• 1953/1954

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 119399

• • alternative name: Diederichs & Kühlwein

• Number of Tubes
• 4

• Valves / Tubes
• ECC40 EF40 EL34 EL34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

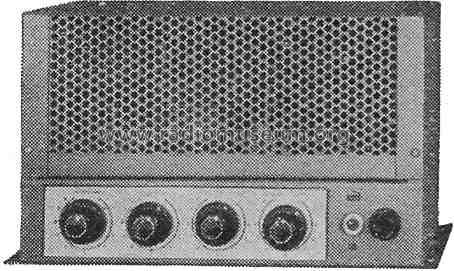

• Model: TPV20/15mV [ECC40] - Teladi; Düsseldorf

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 190 x 130 mm / 11.8 x 7.5 x 5.1 inch

• Notes
• Eingänge: 2× 15 mV, 4 Ausgänge; Frequenzbereich: 30···15 kHz ± 0,5 dB.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 435.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1953/54

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
