117LO
Tele King
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele King
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 349410
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BH6 6AG5 6AU6 6CB6 or 6AU6 6CB6 or 6AU6 6AL5 6AC7 12AU7 6AU6 6T8 6AQ5 6SN7GT 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 117LO - Tele King
- Shape
- Chassis only or for «building in»
- Notes
-
Tele-King model 117LO is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.

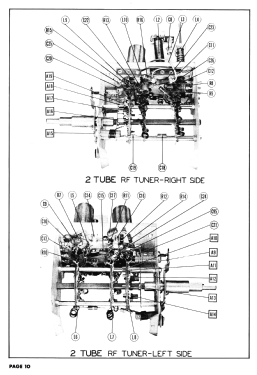

Equipped with VHF tuner TT-6 and picture tube 17BP4.
- Literature/Schematics (1)

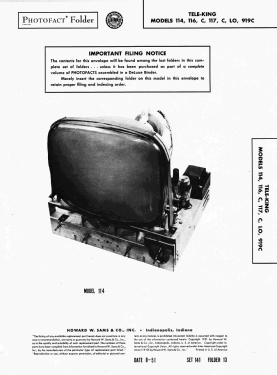

- Photofact Folder, Howard W. SAMS (Set 141, folder 13, dated 8-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
