• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele King

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 346546

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6J6 or 6BH6 6J6 or 6AG5 6J6 6AU6 6CB6 or 6AU6 6CB6 or 6AU6 6AL5 6AG7 or 6AC7 12AU7 6AU6 6AT6 or 6T8 6AQ5 6SN7GT 6AL5 6SN7GTA 6BG6G 6W4GT 1B3GT 1B3GT 5U4G 16HP4A or 16CP4 or 16DP4 or 16AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 916C - Tele King

• Shape
• Chassis only or for «building in»

• Notes

• Tele King model 916C is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with a VHF tuner and picture tube 16HP4A or 16CP4 or 16DP4 or 16AP4.



• Literature/Schematics (1)

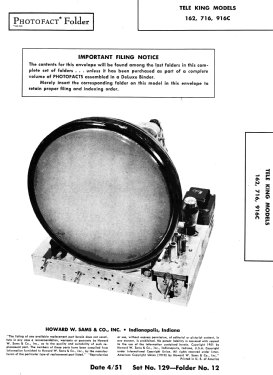

• Photofact Folder, Howard W. SAMS (Set 129, folder 12, dated 4-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
