• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele King

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92084

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

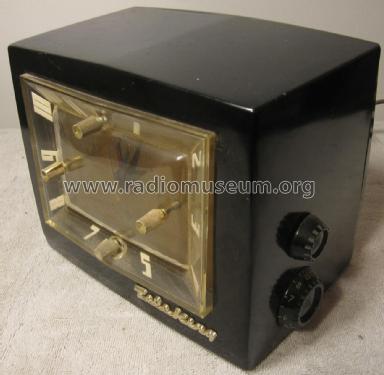

• Model: RKC54 - Tele King

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 7.25 x 6.25 x 5 inch / 184 x 159 x 127 mm

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
